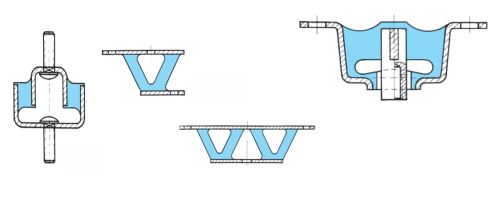

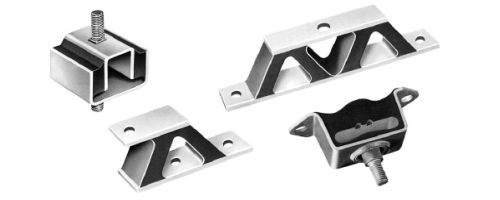

MEGI^®-U-V-W-Shaped-Parts - MEGI^®-Ceiling-Element

For the particular soft elastical mounting of light weight instruments, devices and gadgets!

Type of load / -directions:

• compression (V-W-Parts)
• Shear (U-Parts)
• Tear (only Ceiling-Elements)

Statically maximum load :

• Compression: 600 N (V-W-Part)
• Shear 1400 N (U-Part)
• Tear: 750 N (Ceiling-Element)

Types:

These elements are available in
Shore A-Hardnesses as follows:

• soft (40°)

• middle (60°)

• hard (70°)

Details and technical datas like dimensions and loads are available from the chapter of the MEGI®-catalogue by following the link:

Datasheet:              MEGI^®-U-V-W-Shaped-Parts / MEGI^®-Ceiling-Elemente

If you are looking for a special MEGI® part number you are welcome to use the search function on this page above.

Examples of use:

For the mounting or wall installation of sensitive.....

• gadgets
• equipment
• devises
• instruments
• for fastening or suspension of tube systems or light systems
  (Ceiling-Elements with tear-off-guard)

Special properties:

• different stiffnesses in three directions (U-Lager)
• soft mounting

Indications:

• Strength category of the screw joint (U-Part): 5
• No tear load of the elastomer permitted (U-V-W-Parts)
